#What is ETC0₂?

End tidal C0₂ is the measurement of the partial pressure of C0₂ gas which is expired during exhalation. The measurement is taken at the end of exhalation in an attempt to measure when the exhaled gas will most likely match the alveolar C0₂ concentration.

Capnometry was first used in World War II to measure atmospheric C0₂ levels. Its first use in medicine was in 1950 to measure exhaled C0₂ in anaesthetised patients. Capnometry had a more widespread adoption in the 1980’s with the development and production of smaller capnometry machines.

The measurement of ETC0₂ has two parts, the numerical measurement (Capnometry) and the waveform (Capnography). A thorough understanding of both is important.

Metabolic, perfusion, and ventilation status can be reflected in real time through the measurement of ETC0₂. Highlighting the importance of its use in critically unwell patients.

#The science behind ETC0₂

C0₂ is a byproduct of cellular metabolism. Put simply, Cells take in Oxygen and glucose, and create carbon dioxide (C0₂), water and energy (ATP). C0₂ is then bound to haemoglobin via as series of reactions and carried via the blood stream to the lungs, where removal from the body occurs through gas exchange with the atmosphere.

CO2 plays an important role in acid-base balance.

The equation below represents Bicarbonate-Carbonic acid buffer system:

C0₂ + H₂0 <—> H₂C0₃ <—> H ⁺ + HC0_3-

When C0₂ levels are high, there is a rightwards shift of the reaction. This results in an increased amount of H⁺ ions released into the bloodstream, lowering blood pH subsequently resulting in acidosis.

How does C0₂ exchange work in the lungs?
Well, gas exchanges occur through gas diffusion. Gasses diffuse from areas of higher concentration to areas of lower concentration, following a concentration gradient. In the pulmonary artery, deoxygenated blood has a partial pressure of carbon dioxide (pc0₂) of approximately 46 mmHg and a partial pressure of oxygen (P0₂) is roughly 40 mmHg. This results in Oxygen from the alveolus (p0₂ of ~100 mmHg) to diffuse into the pulmonary artery, and C0₂ to diffuse into the alveolus (pc0₂ of ~40mmHg) and be expelled into the atmosphere. This is where etc0₂ measurement occurs.

#What is dead space? Does it matter?

When talking about ETC0₂, dead space refers to inhaled gases that do not participate in gas exchange. The etc0₂ measurement is usually 2-5 mmHg lower in etc0₂ than pac0₂ - although this can be significantly effected in certain conditions. This can happen for 3 reasons:

1. Anatomical dead space
   • Trachea and large bronchi - Gases in these spaces do not participate in gas exchange.
2. Instrument dead space
   • Breathing circuits, ET tube, Igel
3. Alveolar dead space
   • Dysfunctional alveoli which receive ventilation but don’t exchange C0₂. This is most notable in patients with diseased lungs.

What is the correlation between dead space and etc0₂? Well, simply put, with increasing dead space, especially alveolar or physiological dead space, will represent a difference between etc0₂ measurements and pac0₂.

For example, alveolar dead space may be increased in a patient with a lung dysfunction at the alveolar, vascular or airway level. Pulmonary embolism, pneumonia, aspiration and asthma are all examples of conditions which can significantly increase alveolar or physiological dead space.

credit EMcrit

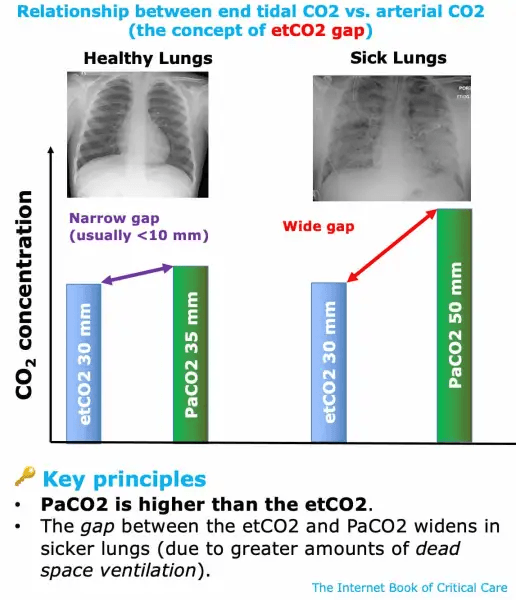

Dead space is a concept used to theorise the difference between etc0₂ and Pac0₂. Increased dead space can lead to low etc0₂ levels, although this is something we can not measure in the prehospital setting.

Can the theory of dead space be applied in the prehospital setting? Maybe. For example, you have a patient who you suspect has a pulmonary embolism, this would create a alveolar dead space. Some studies suggest an etc0₂ >35 mmHg can almost rule out a PE with a negative predictive value of 95% —> 100%. 1, 2, 3

#Cardiac output and ETC0₂

Does cardiac output affect ETC0₂? Well, transiently.

For example, lets think about etc0₂ during cardiac arrest. You may have initially low ETC0₂ levels due to no cardiac output. High quality CPR will drastically increase cardiac output and increase the etc0₂. If ROSC occurs, then a spike in etc0₂ may occur.

Another example is during a leg raise during hypotension. This will temporarily increase cardiac output and is a good predictor of patients who will be preload-responsive. If increase in cardiac output occurs, a transient increase in etc0₂ will occur.

#Mainstream or Sidestream ETC0₂ monitoring

Mainstream ETC0₂ monitors sit directly above the airway adjunct, inline with the airway circuit. An example of this is the EMMA device. This allows for the expired gass to pass the infrared light path and results in almost immediate reading of ETC0₂. This allows for fast response times. The main disadvantage of a mainstream device is its difficult/impossible use on spontaneously breathing patients.

Sidestream ETC0₂ monitors sit away from the airway circuit. The ETC0₂ monitoring on the corpuls is a sidestream device. Sidestream monitors take samples of the expired gas through an adjunct in the airway circuit. The corpuls achieves this through the use of a pump. Sidestream devices enable versatility in measurement through a variety of measurement devices, like nasal prongs and circuit attachments.

Mainstream and sidestream devices provide quantitative data, as they provide a numerical value for ETC0₂.

Colourmetric devices are a qualitative device which provides a range of values represented by colours. These devices can be termed C0₂ detectors, and not monitors. Historically, they were used within ambulance to ensure the presence of C0₂ post intubation. Colourmetric devices are considered mainstream devices, although their use is as a last resort, if all other devices fail.

#ETC0₂ measurements and waveforms

Assessment of ETC0₂ is multifaceted. During ETC0₂ monitoring you receive capnography and a capnometry.

Capnometry measures ETC0₂ through numerical representation only, where as Capnography is inclusive of numerical measurement and displays a waveform.

Another crucial aspect of ETC0₂ monitoring is the Capnograph. The capnograph represents a inspiratory, expiratory waveform.

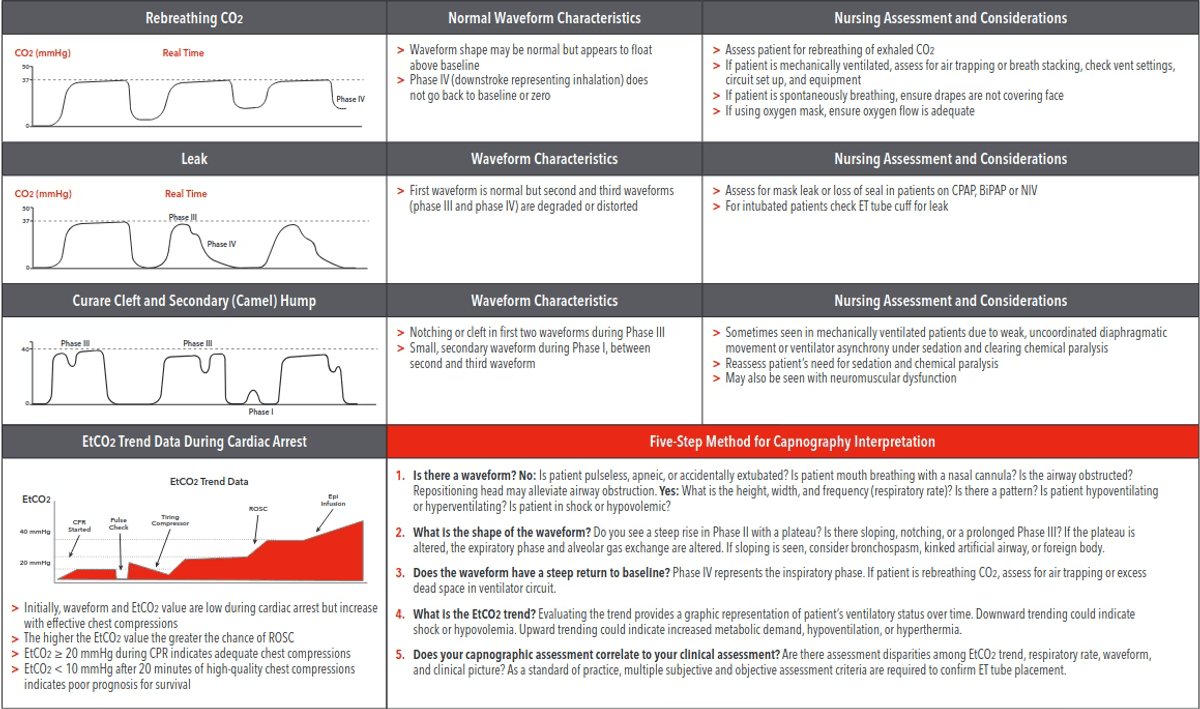

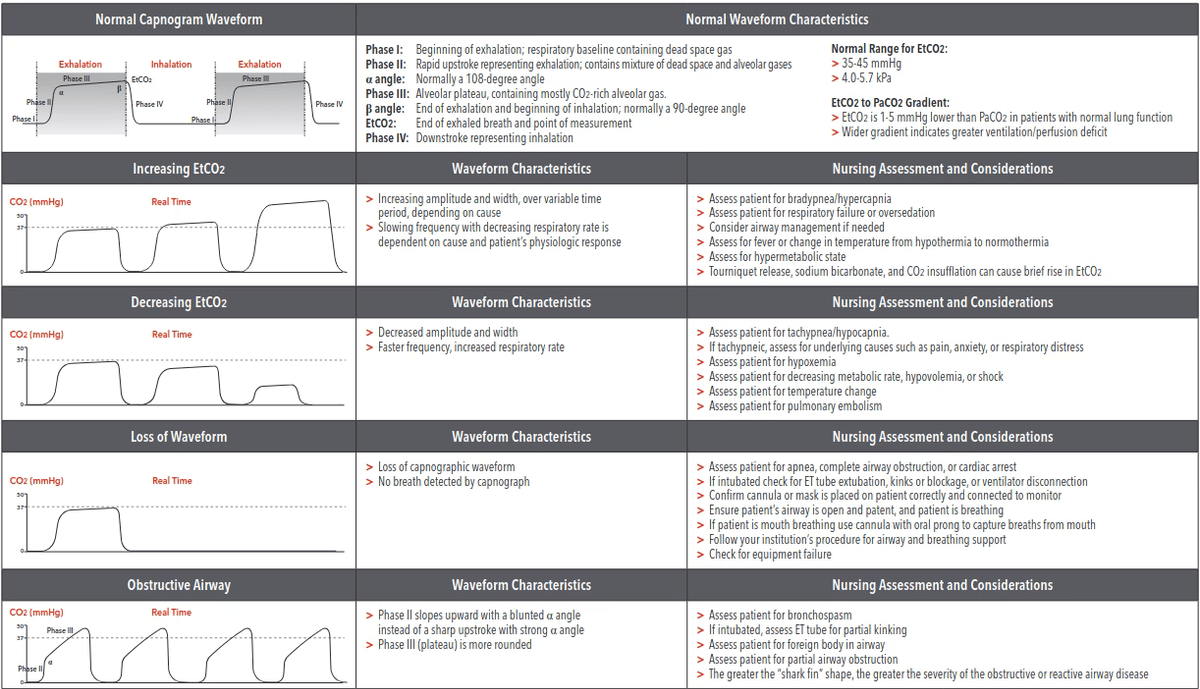

Many factors can effect the ETC0₂ reading and waveform. Below is a graph of common waveforms.

Some factors that can effect ETC0₂ readings:

Low ETC0₂

High ETC0₂

#Who should receive ETC0₂ monitoring? How can it help?

ETC0₂ can be a useful tool in many scenarios. It provides useful, realtime feedback about a patients respiratory function and status. etco2 is a useful and necessary adjunct to confirming ETT placement.

Patients who should receive ETC0₂ monitoring is up to the discretion of the provider.

A short list of patients who could benefit from ETC0₂:

End tidal can be a useful adjunct to treatment. It allows the provider to have another tool to assess respiratory/ventilatory/circulatory status. It is important to understand how to interpret and diagnose reasons for low and high etc0₂ readings.

Here is a short video from LITFL on the use of ETC0₂ in cardiac arrest

ETC0₂ can prove as a beneficial assessment of CPR quality. ETC0₂ should rise to near normal levels or >30 mmHg with good CPR. Fatigue will show immediate decrease in ETC0₂ and should be an indicator to swap CPR providers. Inversely, a sharp rise in ETC0₂ can be an indicator of ROSC. A sharp rise in ETC0₂ to normal or above normal levels indicates cardiac output.

An ETC0₂ of <10 mmHG or equal to 10 mmHg after 20 mins of ACLS has a positive predictive value of 100% of mortality. Persistently low ETC0₂ during CPR in intubated patients suggests ROSC is unlikely. ETC0₂ levels near normal for cardiac arrests up to 60 minutes have show survival to discharge rates of almost 20% in persistent VT/VF arrests.

ETC0₂ monitoring can prove useful in the prevention of hyperventilation of patients during post ROSC care. Aim for a ETC0₂ of 35-45 mmHg.

The use of ETC0₂ in respiratory patients can show efficacy of treatment or be a predictor of deterioration. To note, ETC0₂ during respiratory/cardiac arrest due to asthma/COPD ETC0₂ levels can be extremely high (80-100 mmHg). Trying to lower ETC0₂ in this cohort of patients is not advised, as poorer outcomes are likely. ETC0₂ can be a guide to efficacy of drug therapies.

Use in trauma and head injury can be beneficial. For example, patients with chest/head trauma. Chest injuries can lead to tension pneumothorax and head injuries can have a direct effect on respiratory status. ETC0₂ can play a role in respiratory/airway management and monitoring in these patients.

Use in a range of patients presenting with metabolic disorders can prove useful. Take for example, you have a patient you suspect has DKA. They’re hyperglycemic, present with abdominal pain, nausea, vomiting. ETC0₂ can be a useful tool to help affirm diagnosis. Literature suggests that an ETC0₂ >26 mmHg can effectively rule out the presence of DKA.

Capnography can be used to estimate shock intensity. ETC0₂ will be lower in patients in a significantly volume-shocked stated. This is due to reduced cardiac output, and less flow through the pulmonary circuit. A reduction in pulmonary gas exchange occurs and a reduction in ETC0₂ occurs. ETC0₂ can prove to be a useful tool to help evaluate success of treatment and severity of shocked patients.

ETC0₂ can prove to be a useful adjunct in many scenarios. It provides direct and almost instantaneous feedback to the provider. It can be a great indicator of how well your treatment is working, and an early sign of changes in a patients respiratory/haemodynamic/metabolic status if used appropriately and well. Hopefully you will feel more comfortable using ETC0₂ as an adjunct to your treatment.
